AGFRC Brushless 78KG Billet Servo - A280BHMW
The most reliable and consistent Servo in 5th Scale is here and at a great price for the quality. This servo is getting rave reviews around the hobby and has been manufacturered to insane specs with premium materials!
This 2S HV compatible servo is made as a drop in replacement for factory servos found on Kraken VEKTA, VESLA, Losi 5IVE-T, Rovan/KM and more.
Standard servo connector and no additional voltage supply needed, just run your system on a 2S LiPo for the best results.
The A280BHMW combines a long-life brushless motor with monster torque design taking the driving experience to another level. It is ideal for 1/5th Monster Truck, Buggy, Touring Car, Crawler, Large Airplanes, Robot Arm, etc. Whether you are hitting the track or climbing over sand dunes, 5 ball bearings and high strength Steel gears ensure a reliable performance and long service life.
When it gets wet the fun doesn't stop, fully magnetic (no more pots!) waterproof IP67 grade allows you to carry on in humid environments and rainy days. 78KG of torque and a 0.082Sec lightning fast transit speed make this a market leader. Ultra light unique design with full CNC case for maximum strength and heat dissipation. Supplied with two billet 7075 grade aluminum servo horns, one single sided and one double sided.
check_circle In Stock

AGFRC Brushless 78KG Billet Servo - A280BHMW
star
Features
expand_more
- Full CNC Heat Sink Aluminum Case
- IP67 Waterproof Rating
- Extremely Strong Steel Gears
- Super Reliable Five Ball Bearing design
- 2S Lipo High Voltage Compatible

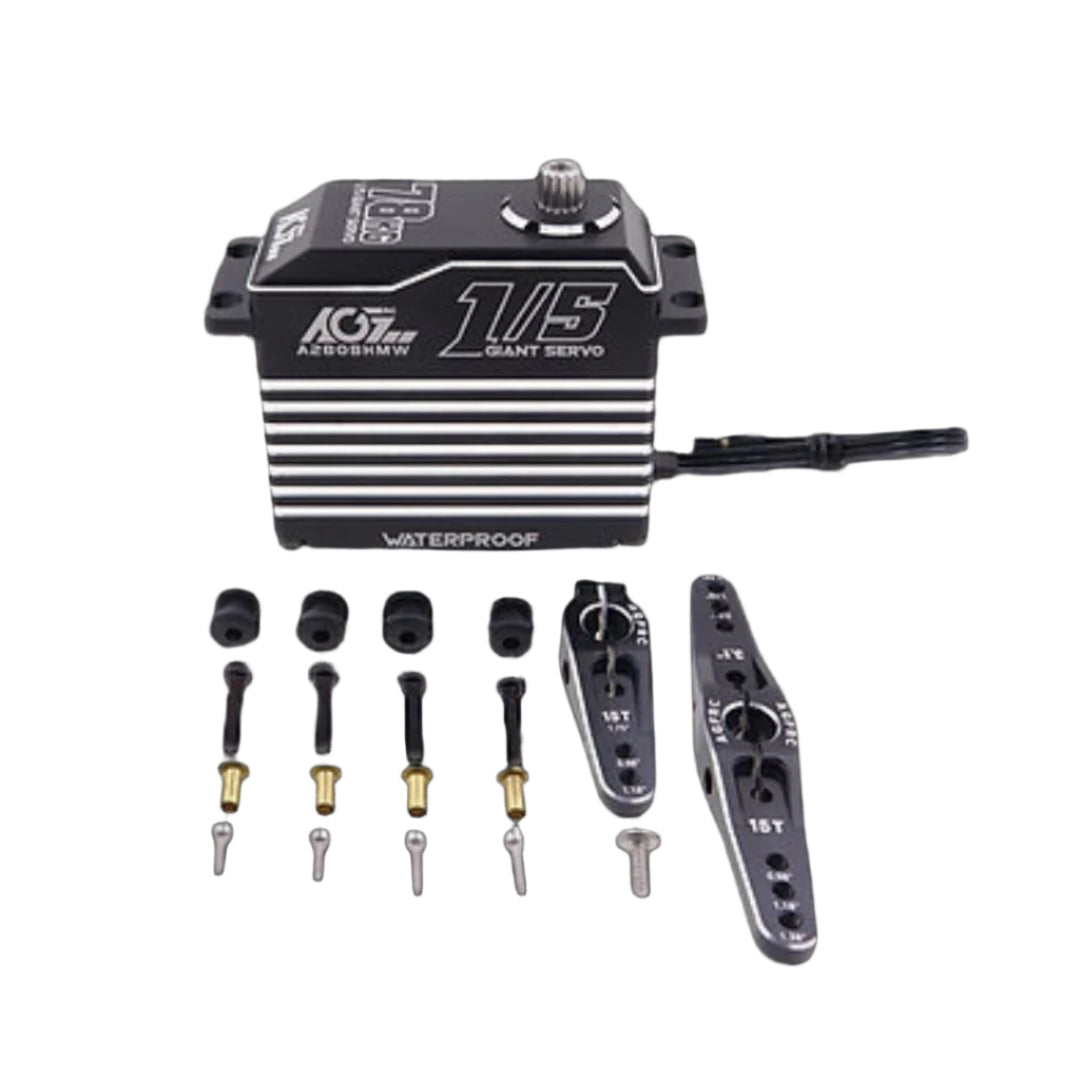

- Includes Two 15T 7075 Grade Aluminum Servo Horns. (Singe & Double sided)
- Bluetooth APP Programmable (Available Soon)
straighten
Specifications
expand_more
- tem name: A280BHMW
- Operating Voltage: 4.8-8.4V
- Operating speed: 0.126 sec/60° @ 4.8V
- Operating speed: 0.110 sec/60° @ 6.0V
- Operating speed: 0.095 sec/60° @ 7.4V
- Operating speed: 0.082 sec/60° @ 8.4V
- Stall Torque: 48.0 kg-cm (667 oz-in) @ 4.8V
- Stall Torque: 58.0 kg-cm (806 oz-in) @ 6.0V
- Stall Torque: 66.0 kg-cm (917 oz-in) @ 7.4V
- Stall Torque: 78.0 kg-cm (1084 oz-in) @ 8.4V

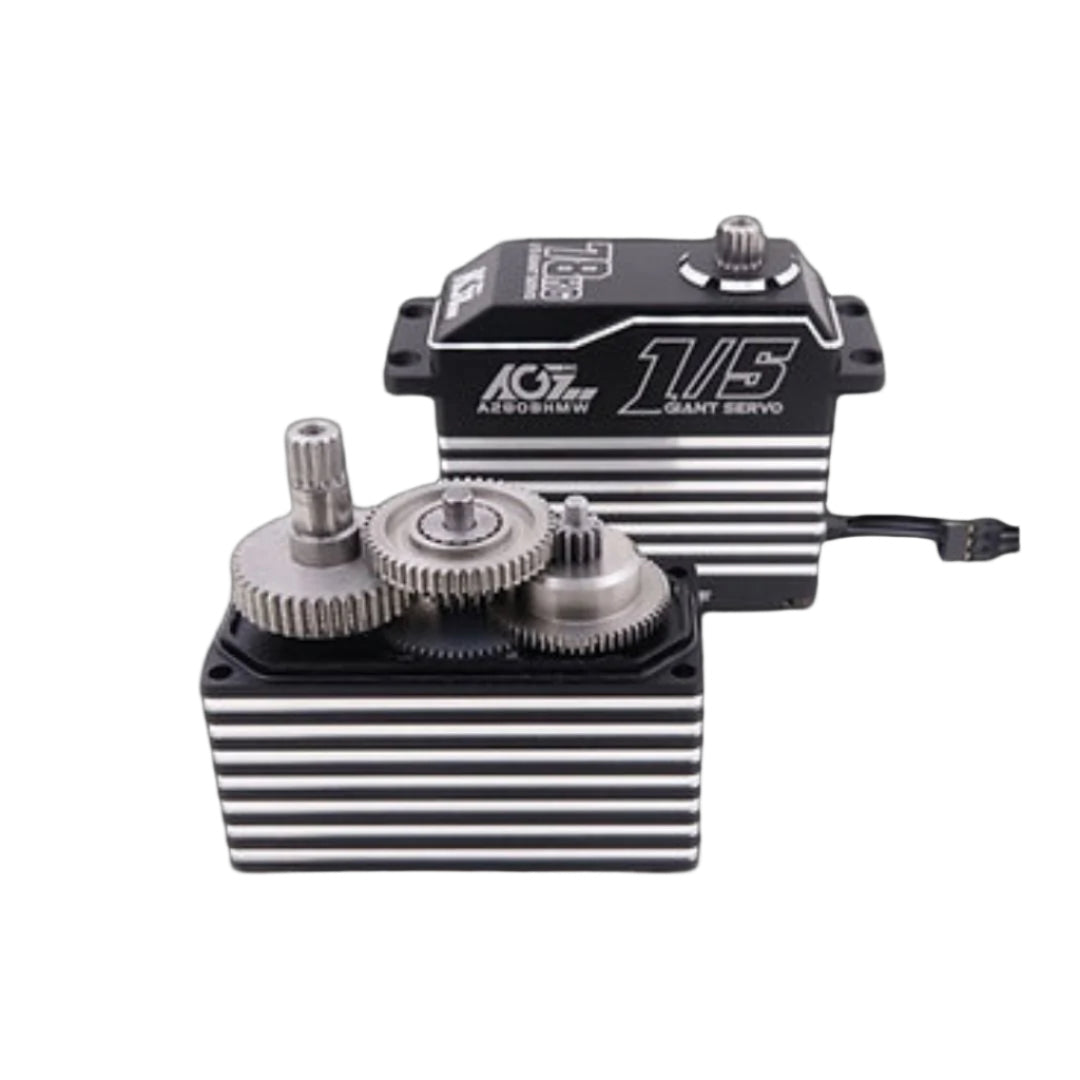

- Gear: Steel
- Motor: Brushless

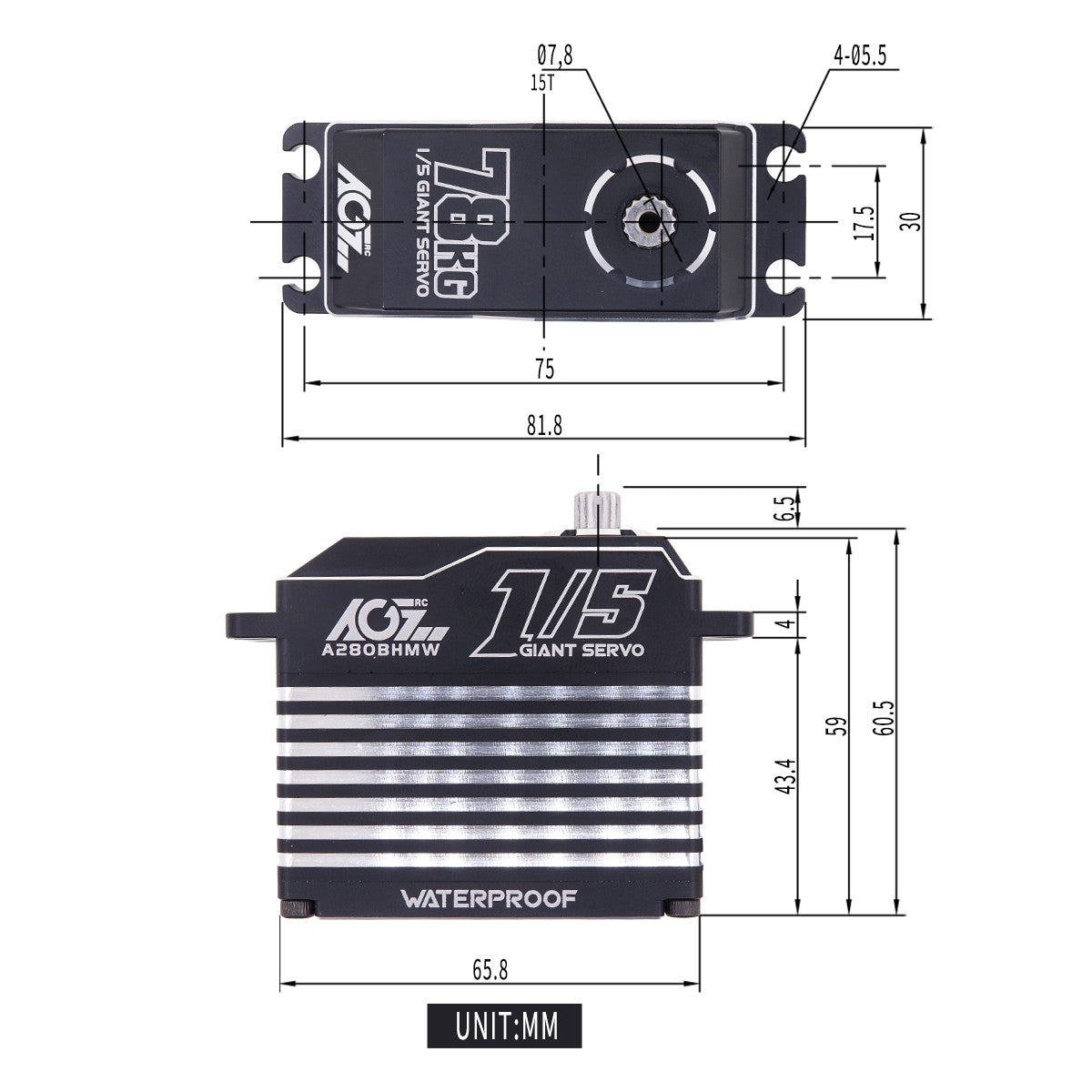

- Size: 65.8*30.0*59.0mm(2.59 x 1.18 x 2.32 in)
- Weight: 284.8g
- Connector Wire: TYU 300mm / 22AWG
notification_important
Suggested Companion Items
expand_more
- Taylor RC Billet Servo Mounts
- Replacement AGFRC Hardware
- AGFRC 100KG A280BHLW Servo
