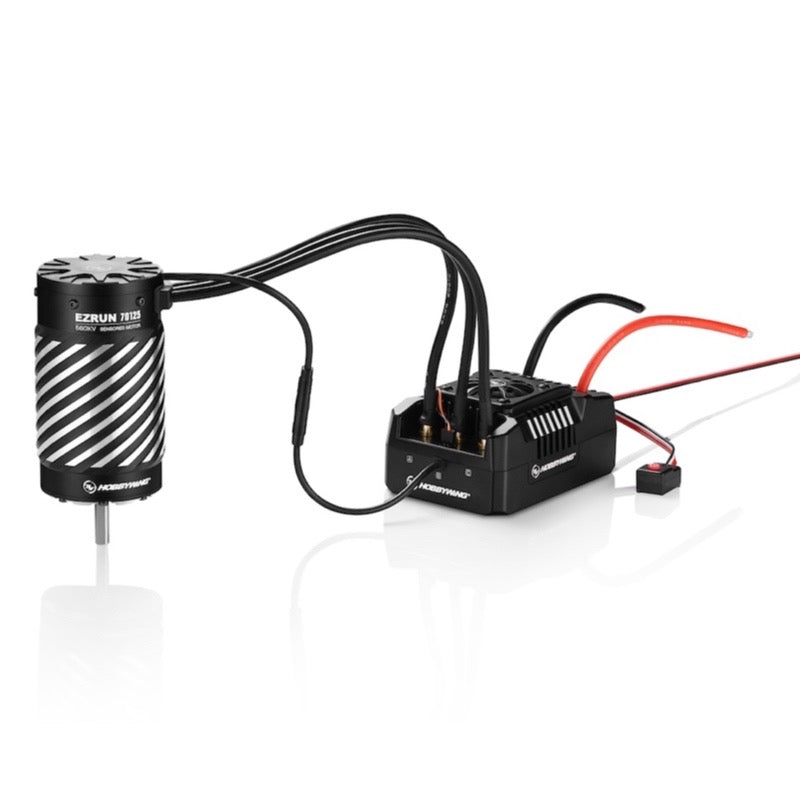

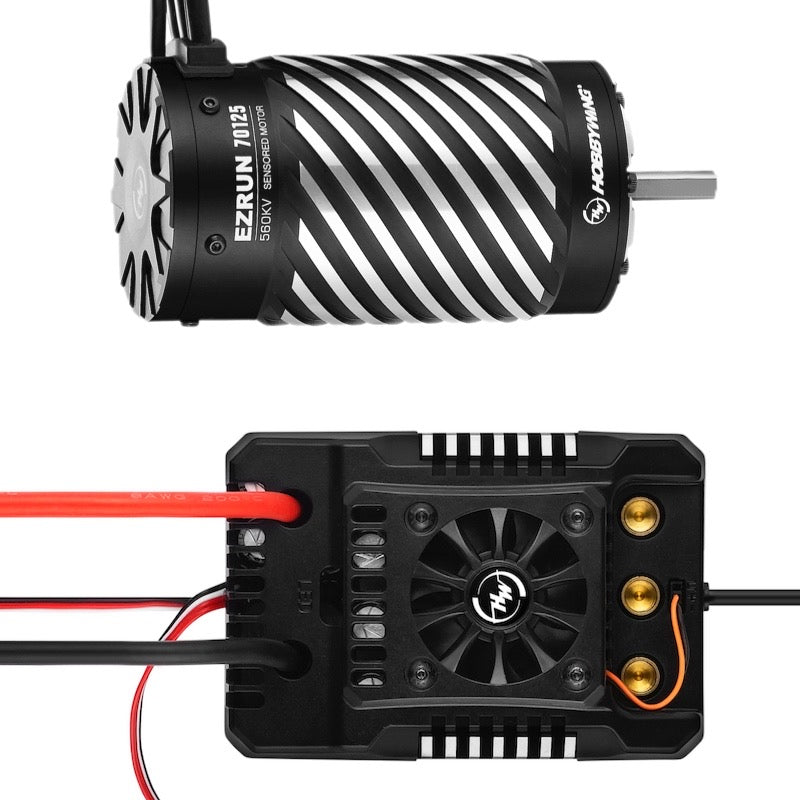

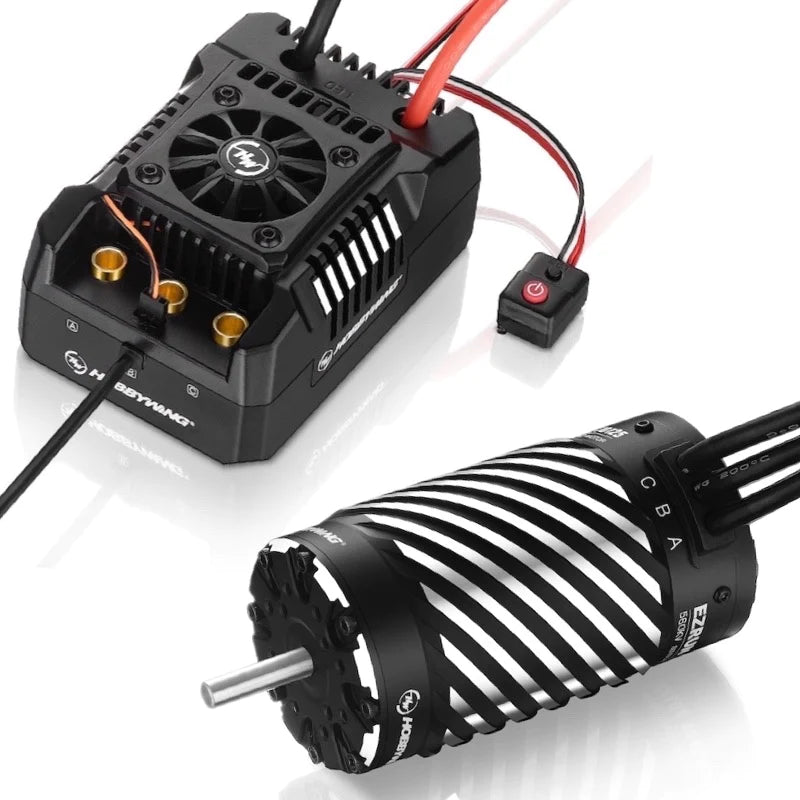

Hobbywing EZRUN MAX4 Combo [HW38020369]

$769.99

Tested and approved for KRAKEN VEKTA.5E

	70125SL-560KV
PN	30402850
Pole	4
KV(No-load)	560KV
R. (Ω)	0.0050
Current No-load（A）	3.6
Motor D.&L（mm）	70mm (2.760in) / 125mm (4.921in)
Shaft D.&L of the projecting part（mm）	8mm (0.315in) / 30mm (1.181in)
LiPo(S)	8-12S Lipo
W (g)	1995g
Applicable	1/4th, 1/5th Heavy-duty Off-road, Truck.
Best match with	MAX 4 HV ESC

	MAX 4 (HV)
Scale Vehicles	1/4 - 1/5th
Cont./Peak Current	300A/2000A
Motor Mode	Sensored and sensorless brushless motor
Input	6-12S Lipo
Motor Limit	With 12S Lipo: KV≤600 70125 size motor
BEC Output	6V / 7.4V / 8.4V adjustable, continuous current 10A (Switch-mode)
Programming Port	Share with Fab interface
Switch Mode	Electronic Switch
Capacitor protection	Yes
Waterproof	Yes
Size (L.W.H) mm	125 x 85 x 61.7mm
Weight (g)	775.4g

The ESC uses a special process, coupled with an innovative waterproof design, to increase waterproofing and dust-proofing performance in different climates. It is easy to deal with the harsh conditions containing sediment, ice, snow, and water accumulation.
Built-in ultra-powerful switch mode BEC with a continuous current of 10A, an instant 25A, and support for 6V/7.4V/8.4V switching, supporting a wide range of powerful and high-voltage servos.
Equipped with the most advanced and safe electronic switches. The traditional mechanical switch protects and prevents dust, humid and other harsh environments, contact rust, and violent impact (such as flying slope landing) caused by the automatic closure of mechanical switches and other issues.
Built-in fire-proof circuitry to protect the battery plug, while effectively avoiding damage to the case from electrical sparks (fingers).
Multiple protection functions: battery low voltage protection, ESC and motor overheat protection, signal loss protection, and current protection.
Support LED program card, LCD program box, OTA programmer (Note: optional) to set the parameters of the ESC.
Real-time data recording function to view various running data on the HW LINK app using the OTA Bluetooth module.

User's Manual-70125 Motor
